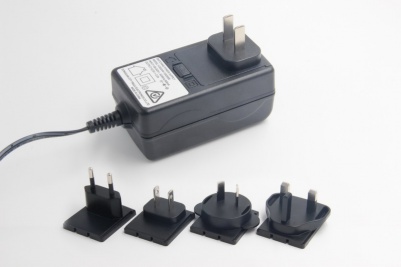

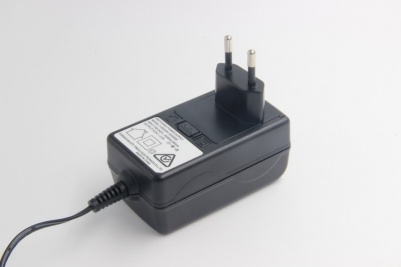

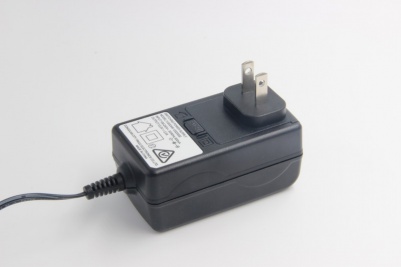

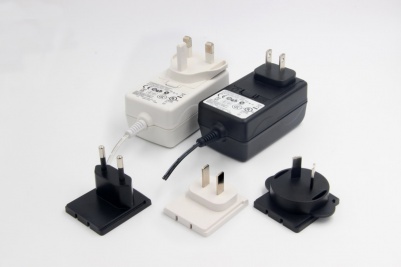

YJS024W 24W 适配器  可换式

技术参数/Technical Data
额定输入电压/Rated input voltage:100-240Vac
输入电压范围/Input voltage range:90-264vac
额定工作频率/Rated operating frequency:50/60Hz
工作频率范围/Operating frequency range:47-63Hz
输入电流/Input current:800mA Max.

能效等级/Energy efficiency level:VI
输出电压/Output voltage:5.0-30.0Vdc(Min.step:0.1V)
输出电流范围/Output current range:10-3000mA(Min.step:10mA)
输出功率/Output power:24W Max.

环境要求/Environmental Specification
工作温度/Operation tenp:0℃～40℃

认证标准
中国/China                      GB4943
欧州/Europe                    EN60950/EN61558/EN60065
北美/North American       UL60950+CAN/CSA C22.2
日本/Japan                      J60950
澳州/Australia                  AS/NZS 60950
